A solar inverter is a crucial component in any solar power system. As a solar inverter supplier, I've witnessed firsthand the growing demand for clean and sustainable energy solutions. In this blog, I'll delve into how a solar inverter works, the different types available, and why they're essential for your solar setup.
The Basics of Solar Power Generation
Before we dive into the workings of a solar inverter, let's briefly understand how solar power is generated. Solar panels, also known as photovoltaic (PV) panels, are made up of numerous solar cells. These cells are designed to absorb sunlight and convert it into direct current (DC) electricity through the photovoltaic effect. When sunlight hits the solar cells, it excites the electrons within them, creating an electric current.
However, most household appliances and the electrical grid operate on alternating current (AC) electricity. This is where the solar inverter comes in. Its primary function is to convert the DC electricity produced by the solar panels into AC electricity that can be used in your home or fed back into the grid.
How a Solar Inverter Works
The process of converting DC to AC involves several steps and components within the solar inverter. Here's a detailed breakdown of how it works:
DC Input
The solar inverter receives DC electricity from the solar panels. The amount of DC power depends on various factors, such as the size and efficiency of the solar panels, the amount of sunlight they receive, and the temperature. The inverter is designed to handle a specific range of DC input voltages and currents, which are typically specified by the manufacturer.
Maximum Power Point Tracking (MPPT)
One of the key functions of a solar inverter is to optimize the power output from the solar panels. This is achieved through a technology called Maximum Power Point Tracking (MPPT). MPPT constantly monitors the voltage and current from the solar panels and adjusts the operating point to ensure that the panels are operating at their maximum power output. By doing so, MPPT can significantly increase the overall efficiency of the solar power system, especially in varying sunlight conditions.
Inversion Process
Once the DC power is optimized, the inverter uses a series of electronic switches, such as insulated-gate bipolar transistors (IGBTs) or metal-oxide-semiconductor field-effect transistors (MOSFETs), to convert the DC electricity into AC electricity. This process involves rapidly switching the DC current on and off at a high frequency, typically around 20,000 Hz or more. The switching creates a square wave or a modified sine wave, which is then filtered and shaped to produce a pure sine wave AC output that is similar to the electricity supplied by the grid.
Grid Connection and Synchronization
If your solar power system is connected to the grid, the inverter needs to synchronize its AC output with the grid voltage and frequency. This is done using a control circuit that monitors the grid parameters and adjusts the inverter's output accordingly. Once synchronized, the inverter can feed the excess AC power generated by the solar panels back into the grid, allowing you to earn credits or reduce your electricity bills through net metering.
Monitoring and Protection
Modern solar inverters are equipped with advanced monitoring and protection features to ensure the safe and efficient operation of the solar power system. These features include overvoltage protection, undervoltage protection, overcurrent protection, and temperature protection. The inverter also monitors its own performance and can detect and diagnose any faults or malfunctions. In case of a problem, the inverter can automatically shut down to prevent damage to the system and ensure the safety of the users.
Types of Solar Inverters
There are several types of solar inverters available on the market, each with its own advantages and disadvantages. Here are the most common types:
String Inverters
String inverters are the most widely used type of solar inverter. They are connected to a series of solar panels, known as a string, and convert the DC electricity from the entire string into AC electricity. String inverters are relatively inexpensive and easy to install, making them a popular choice for small to medium-sized solar power systems. However, they have a limitation in that the performance of the entire string is affected by the performance of the weakest panel in the string.
Microinverters
Microinverters are installed on each individual solar panel, allowing each panel to operate independently. This means that the performance of one panel does not affect the performance of the others, resulting in a higher overall energy yield, especially in shaded or unevenly illuminated areas. Microinverters also provide more detailed monitoring and control of each panel, allowing for easier troubleshooting and maintenance. However, they are more expensive than string inverters and require more complex installation.
Hybrid Inverters
Hybrid inverters are designed to work with both solar panels and energy storage systems, such as batteries. They can convert the DC electricity from the solar panels into AC electricity for immediate use or store it in the batteries for later use. Hybrid inverters also allow you to use the stored energy during periods of low sunlight or power outages, providing greater energy independence and reliability. They are a good choice for off-grid or grid-tied solar power systems with energy storage requirements.
All in One Inverter And Lithium Battery Solar Inverter 1.2v Energy Storage System
This type of inverter combines the functions of a solar inverter and a battery charger in a single unit. It is designed to work with lithium batteries and provides a convenient and efficient solution for energy storage in solar power systems. The all-in-one inverter can automatically switch between charging the batteries from the solar panels and discharging the batteries to power the load, depending on the availability of sunlight and the energy demand.

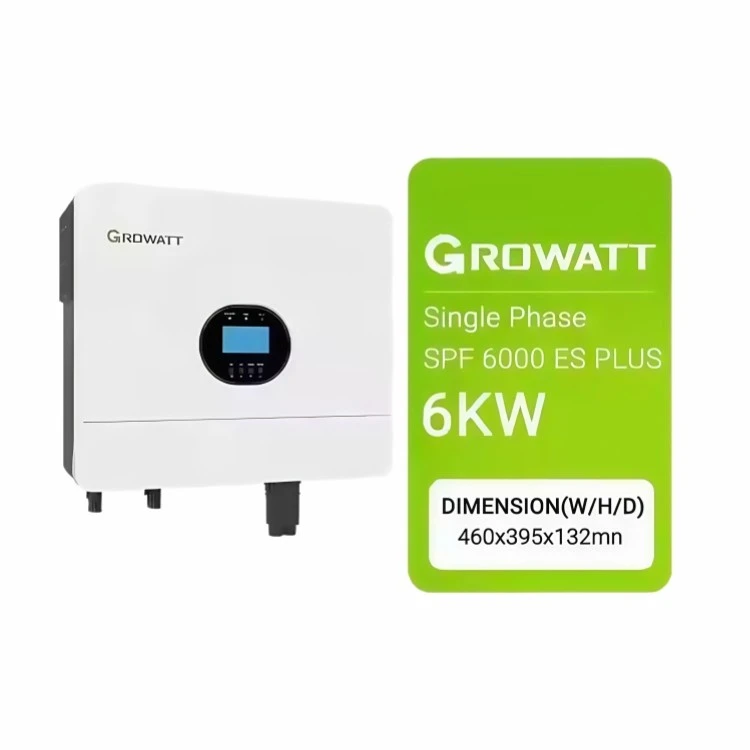

Growatt Off Grid 6Kw/48V SPF 6000 ES Plus Inverter
The Growatt Off Grid 6Kw/48V SPF 6000 ES Plus Inverter is a high-performance inverter designed for off-grid solar power systems. It has a rated power of 6 kW and can handle a maximum DC input of 48 V. The inverter features MPPT technology for maximum power extraction from the solar panels, as well as a built-in battery charger for charging the batteries. It also has a pure sine wave output, which is suitable for powering sensitive electronic devices.
High Quality Solar Inverter 3Kw OFF Grid Hybrid Solar
This 3 kW off-grid hybrid solar inverter is a reliable and efficient solution for off-grid solar power systems. It can convert the DC electricity from the solar panels into AC electricity for immediate use or store it in the batteries for later use. The inverter features MPPT technology, overvoltage protection, undervoltage protection, and overcurrent protection to ensure the safe and efficient operation of the solar power system.
Why a Solar Inverter is Essential
A solar inverter is an essential component of any solar power system for several reasons:
Compatibility with Electrical Appliances
As mentioned earlier, most household appliances and the electrical grid operate on AC electricity. Without a solar inverter, the DC electricity generated by the solar panels would be useless for powering these appliances. The inverter allows you to use the solar power generated by your panels to meet your daily electricity needs, reducing your reliance on the grid and saving you money on your electricity bills.
Energy Efficiency
A high-quality solar inverter can significantly improve the energy efficiency of your solar power system. By using MPPT technology to optimize the power output from the solar panels and converting the DC electricity into AC electricity with minimal losses, the inverter can ensure that you get the most out of your solar investment. This means that you can generate more electricity from the same amount of sunlight, increasing the overall return on investment of your solar power system.
Grid Integration
If you want to connect your solar power system to the grid, a solar inverter is required to synchronize the AC output with the grid voltage and frequency. This allows you to feed the excess power generated by your solar panels back into the grid, earning credits or reducing your electricity bills through net metering. The inverter also ensures that your solar power system operates safely and reliably in parallel with the grid, protecting the grid from any potential damage.
Monitoring and Control
Modern solar inverters come with advanced monitoring and control features that allow you to track the performance of your solar power system in real-time. You can monitor the amount of electricity generated, the energy consumption, and the efficiency of the inverter. This information can help you identify any issues or problems with your solar power system and take appropriate action to resolve them. Some inverters also allow you to control the system remotely using a smartphone app or a web-based interface, providing greater convenience and flexibility.
Conclusion
In conclusion, a solar inverter is a crucial component of any solar power system. It converts the DC electricity generated by the solar panels into AC electricity that can be used in your home or fed back into the grid. By using advanced technologies such as MPPT, the inverter can optimize the power output from the solar panels and improve the overall energy efficiency of the system. There are several types of solar inverters available, each with its own advantages and disadvantages, so it's important to choose the right one for your specific needs.
If you're interested in purchasing a solar inverter or learning more about our products, please feel free to contact us for a consultation. Our team of experts can help you select the right inverter for your solar power system and provide you with all the information you need to make an informed decision. We look forward to working with you to help you achieve your clean energy goals.
