Technical Specifications
| Model & Battery | |
|---|---|
| Model | eCandle Pro (AC+AC) / eCandle Pro (AC+DC) |
| Brand | Beian |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Energy | 1004Wh max |
| System Voltage | 3.2V (single-cell architecture) |
| Cycle Life | ≥6,000 cycles |
| Inverter Type | Pure sine wave |
| Solar Controller | Built-in MPPT |
| PV Input | |
| Max. PV Input Power | 500W |
| PV Input Voltage Range | 12–60VDC |
| AC Input | |
| Input Voltage Range | 90–280VAC |
| Input Frequency Range | 45–65Hz |
| Maximum AC Input Power | 500W |
| AC Output (Inverter Mode) | |
| Nominal AC Output Power | 500W |
| Nominal AC Output Voltage | 220–240VAC (110V optional) |
| Nominal AC Frequency | 50Hz / 60Hz |
| UPS Switch Time | ≤10ms |
| Number of AC Output Ports | 1 (AC+DC) / 2 (AC+AC) |
| DC Output (AC+DC model) | |
| Type-C | 20W max (x1) |
| USB-A | 10W max, 15W total (x2) |
| AC+AC Model | AC outlets only (no DC ports) |
| Physical & Environment | |
| Dimension (W × D × H) | 290 × 168 × 248 mm |
| Net Weight | 8 kg |
| Operating Temperature | -10 °C to 45 °C |
| Special Features | Wireless charging, Type-C, flashlight, cigar lighter port, external battery expansion |
| Warranty | 1–5 years (depending on configuration) |
Specifications are for reference and may be updated without notice. Please confirm the exact configuration (AC+AC / AC+DC, output voltage, packaging) with our sales team before ordering.
Product Details
Why Choose Beian eCandle Pro 500W?

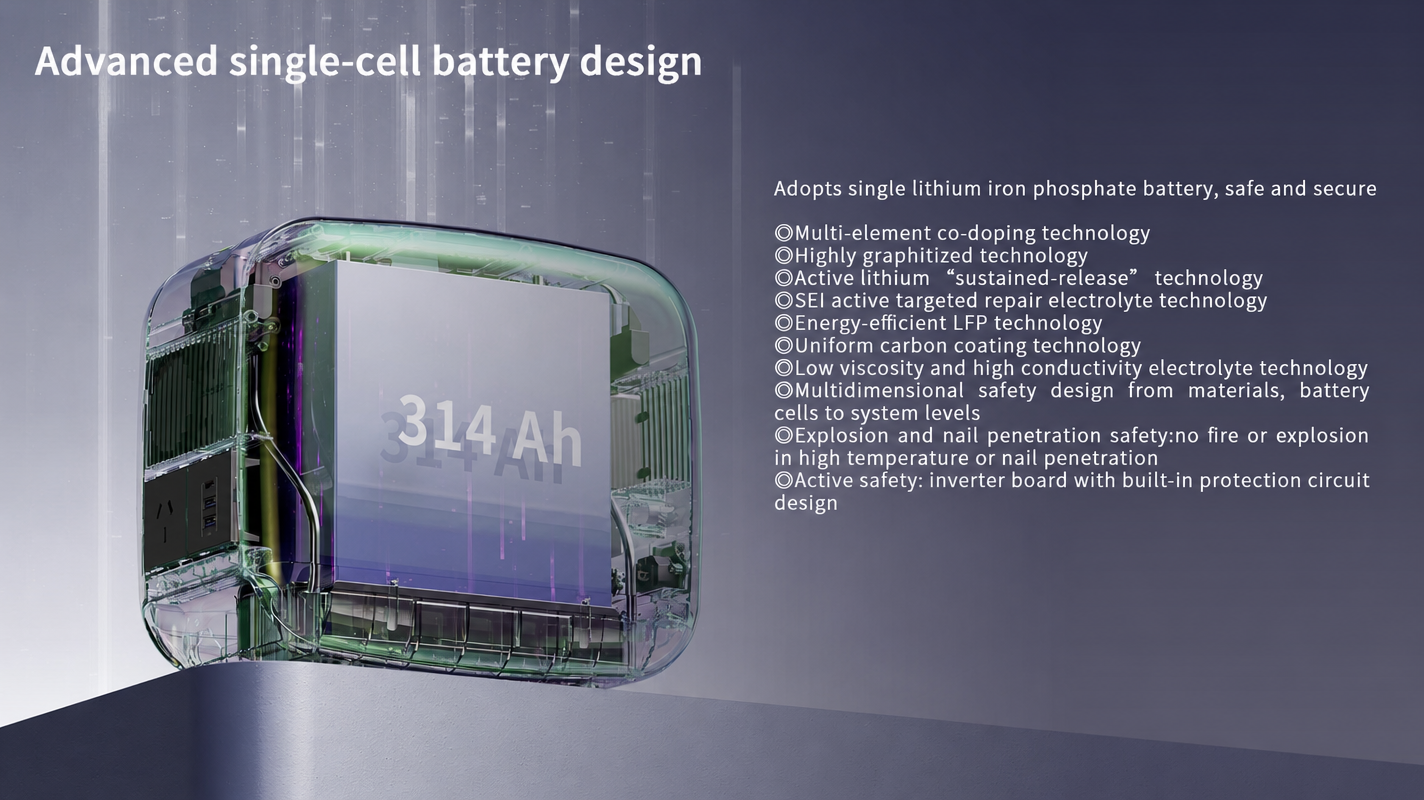

1004Wh LiFePO4 BatterySingle-cell LiFePO4 architecture delivers 1004Wh of usable energy with a rated cycle life of 6,000+ cycles - a long-life, thermally stable alternative to NMC packs. |
500W Pure Sine Wave OutputClean 220–240VAC (110V optional) sine-wave power runs laptops, mini fridges, power tools, routers, cameras and medical equipment safely. |
Built-in MPPT Solar ChargingConnect solar panels directly to the 12–60VDC input - the integrated MPPT controller maximises harvest with no external charge controller needed. |
UPS-Style Backup in ≤10msWhen grid power fails the unit switches to battery output in 10 milliseconds or less, keeping connected equipment running without a restart. |
Portable 8kg Toolbox FormatCompact 290 × 168 × 248 mm housing weighing around 8 kg - easy to carry for field service, camping, RV trips and outdoor events. |
Flexible AC+AC / AC+DC ConfigurationsChoose two AC outlets (AC+AC) or one AC outlet plus Type-C and USB-A ports (AC+DC), with OEM/ODM branding, packaging and voltage options. |
Multi-Channel Charging & ProtectionRecharge from the grid (90–280VAC), from solar (12–60VDC) or from a vehicle cigar-lighter port, with over-voltage, over-current, over-temperature and low-voltage protections built in. |
|
Colours & Configurations

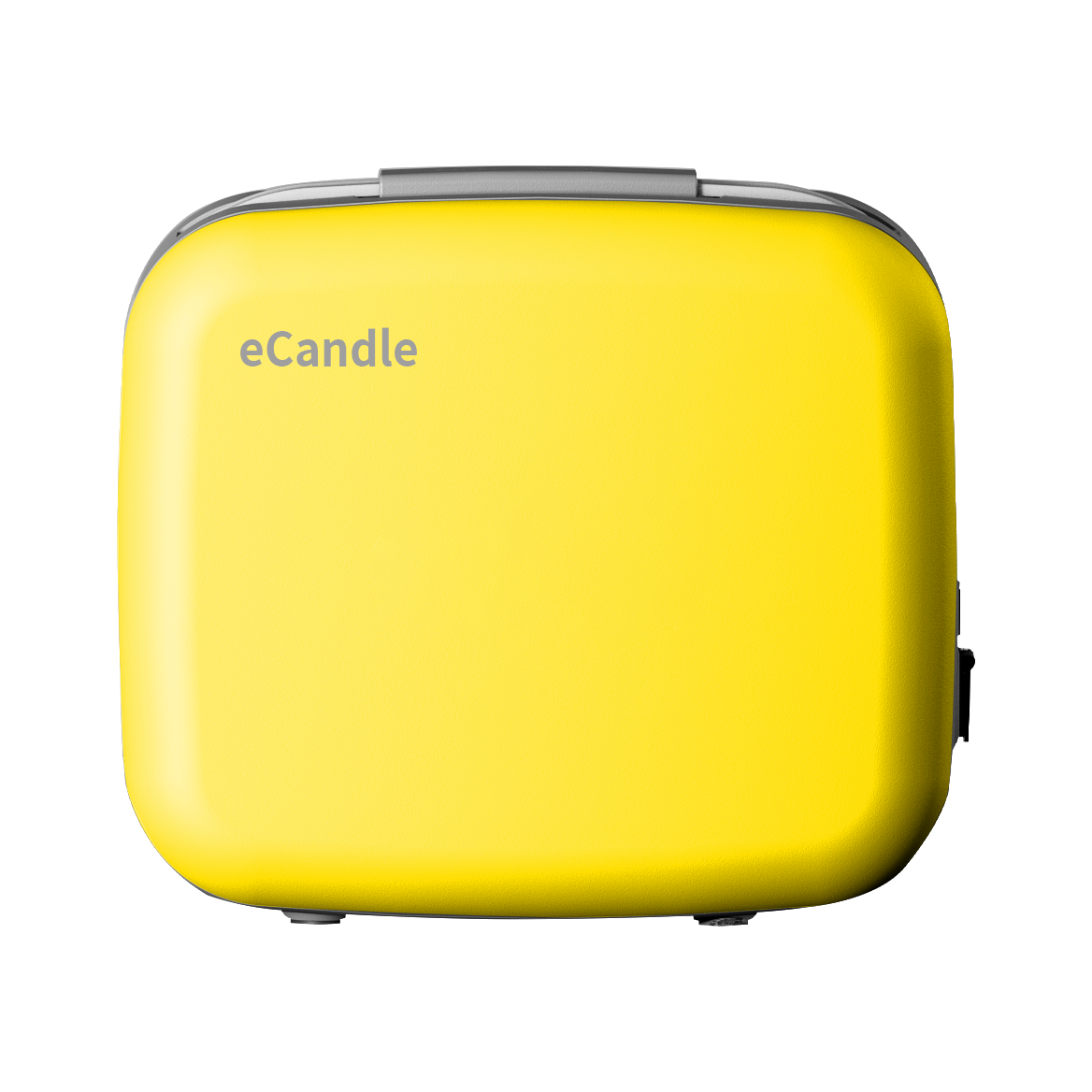

Colour Option 1
|

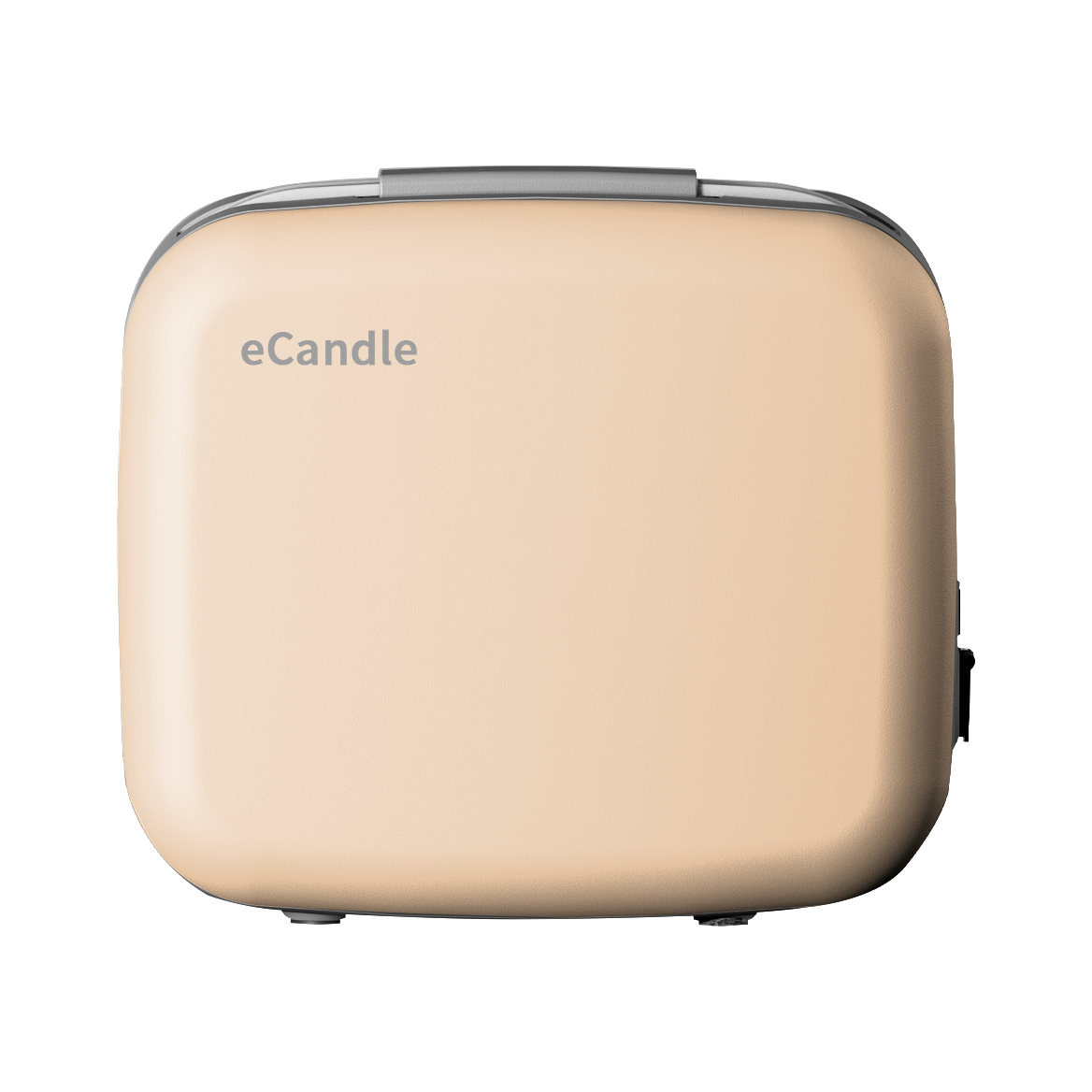

Colour Option 2
|

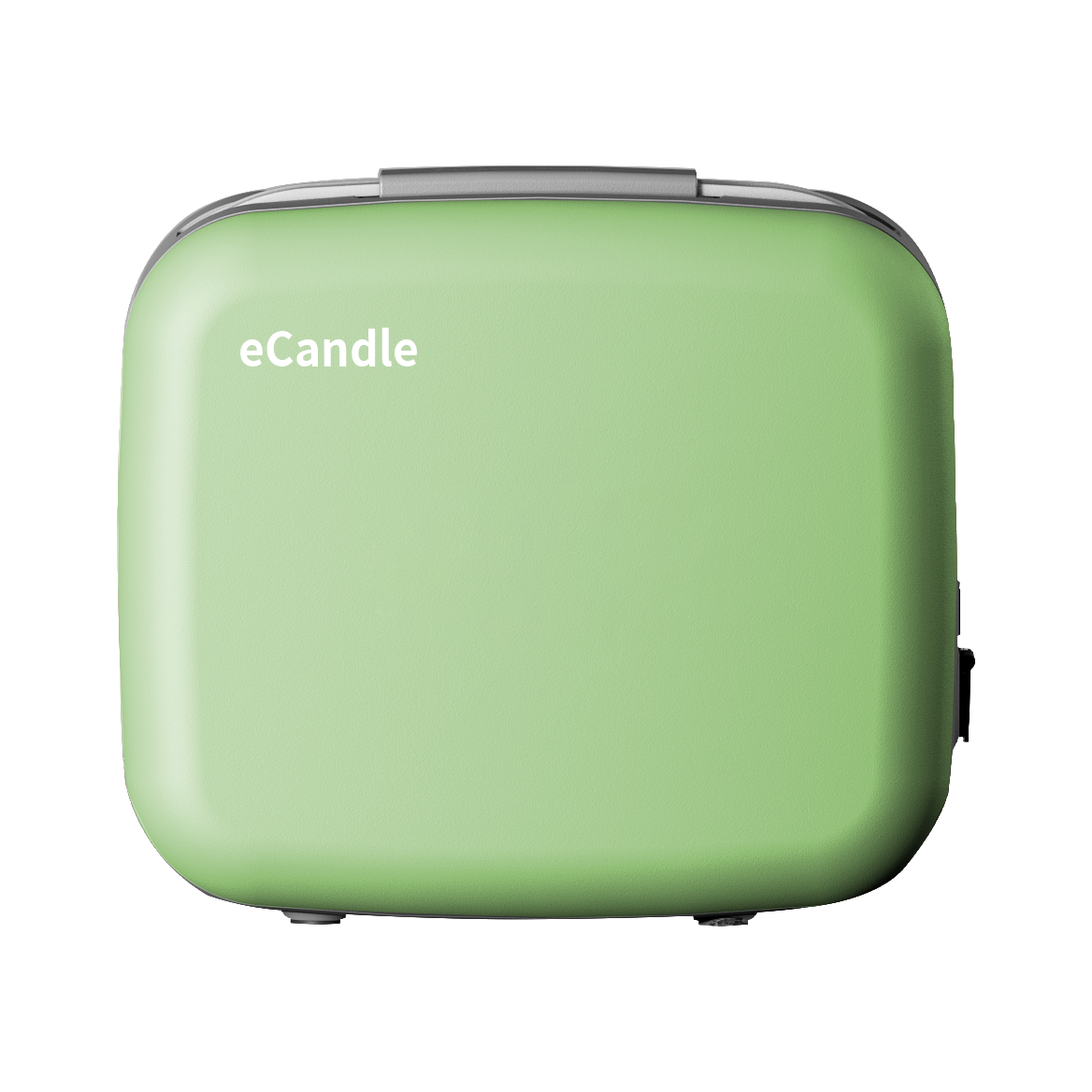

Colour Option 3
|

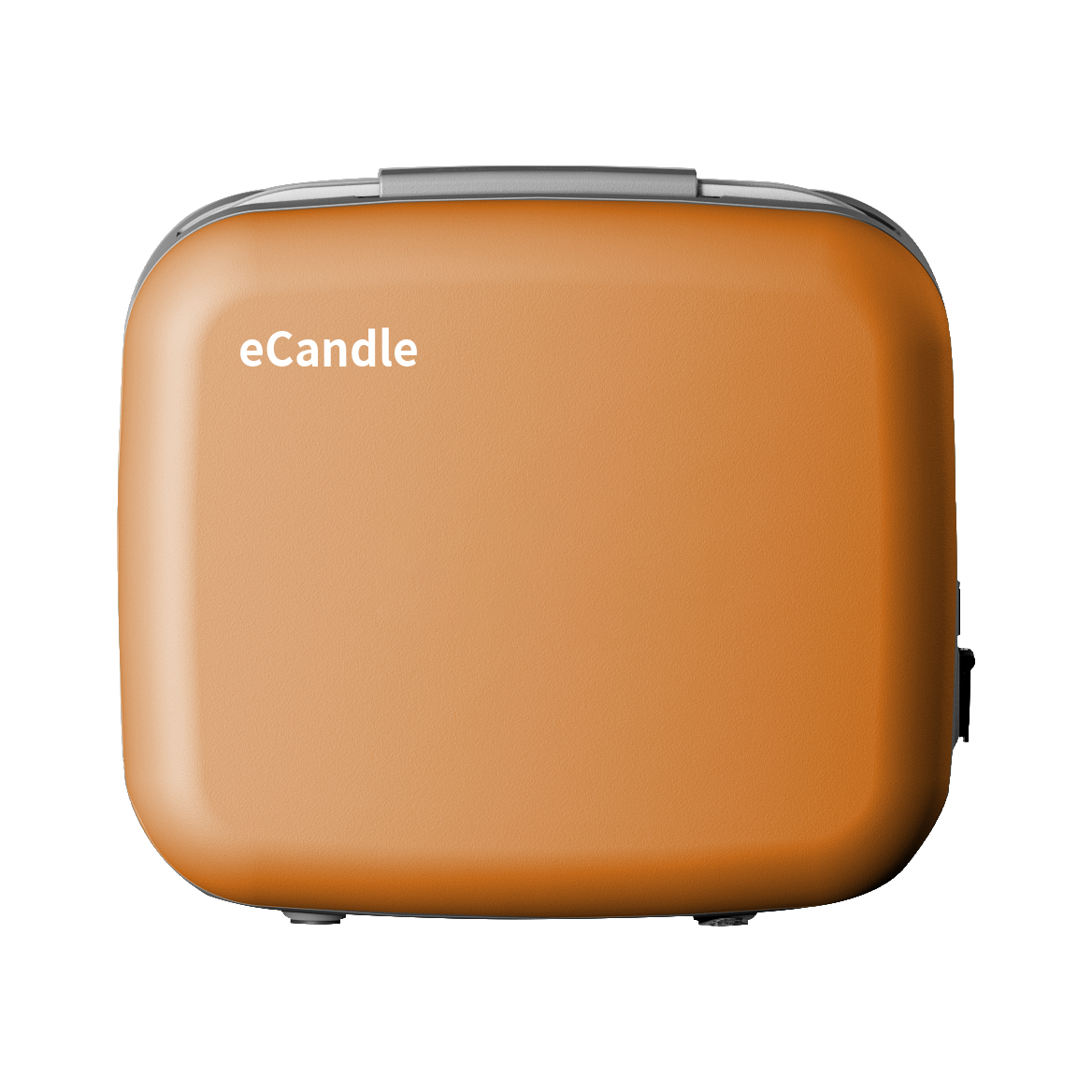

Colour Option 4
|
Housing colour, logo printing, output configuration and packaging can all be customised for volume orders. Send us your requirement and our engineers will confirm the available options.
Certifications & Quality
ISO 9001 ManufacturingProduced in Beian's dust-free workshop in Suzhou under standardised SOP and quality-test procedures. |
CE / FCC / RoHSCompliance documents for the EU, US and other major markets are available on request for your market entry file. |
UN38.3 / MSDS Transport FilesBattery transport test reports and MSDS are prepared for air, sea and express shipment of lithium batteries. |
100% Pre-Shipment TestingEvery unit is function-tested (charging, AC output, UPS switchover) before packing; test records can be supplied on request. |
Please contact our sales team for the current certificate list and test reports for your destination market.
Product Applications
Home & Office BackupUPS-style 10ms switchover keeps routers, computers, lighting and security equipment alive during grid outages. |
Camping, RV & MarinePortable 8kg format powers coolers, cookers, lights and electronics on campsites, boats and road trips. |
Off-Grid Solar SystemsPair with 12–60VDC solar panels for a complete off-grid solar power system with built-in MPPT charging. |
Telecom & Field EquipmentReliable temporary power for telecom cabinets, CCTV, testing instruments and outdoor work sites. |
Frequently Asked Questions
Q1: Where can I get the price?
A: We usually quote within 24 hours after we receive your inquiry. For urgent cases, please call us or tell us in your email so that we treat your inquiry as a priority.
Q2: Do you have an MOQ for this portable power station?
A: We want to support our customers without a strict MOQ request - sample orders are welcome for testing and evaluation.
Q3: What about the lead time?
A: Sample orders need about 7 days; mass production takes 3–5 weeks depending on order quantity and configuration.
Q4: Is it OK to print my logo on the product?
A: Yes. We welcome OEM and ODM orders - logo printing, housing colour, output configuration (AC+AC / AC+DC) and packaging can be customised.
Q5: How long is the warranty?
A: Beian offers 1–5 years of warranty depending on the product and configuration. Please confirm the exact warranty term for your order with our sales team.
Q6: What can a 500W / 1004Wh unit actually run?
A: With 1004Wh of LiFePO4 energy and a 500W pure sine wave output, typical runtime is about 2 hours at full 500W load (calculated value - actual runtime depends on load, temperature and battery condition). Typical loads: laptops, routers, cameras, lights, mini fridges, small power tools and medical devices. Please keep the total continuous load within 500W.
Q7: How many ways can the unit be recharged?
A: Three ways: AC mains (90–280VAC, 45–65Hz), solar panels through the built-in MPPT input (12–60VDC), and a vehicle cigar-lighter port.
Q8: Which solar panels should I use with it?
A: The MPPT input accepts 12–60VDC. Panel voltage and maximum array power depend on the final configuration - please contact our engineers with your panel datasheet and we will confirm the recommended array size before you order.
Q9: Which certificates do you have?
A: Beian operates an ISO 9001 quality system. CE / FCC / RoHS documents and UN38.3 / MSDS transport files are available on request - please tell us your destination market and we will send the applicable certificate pack.
Q10: What are your payment terms?
A: T/T is recommended; PayPal and Western Union are also acceptable. Sample orders are paid in full against the PI; mass orders are 30% deposit with the balance settled before shipment. Please contact us for a formal quotation and proforma invoice.
