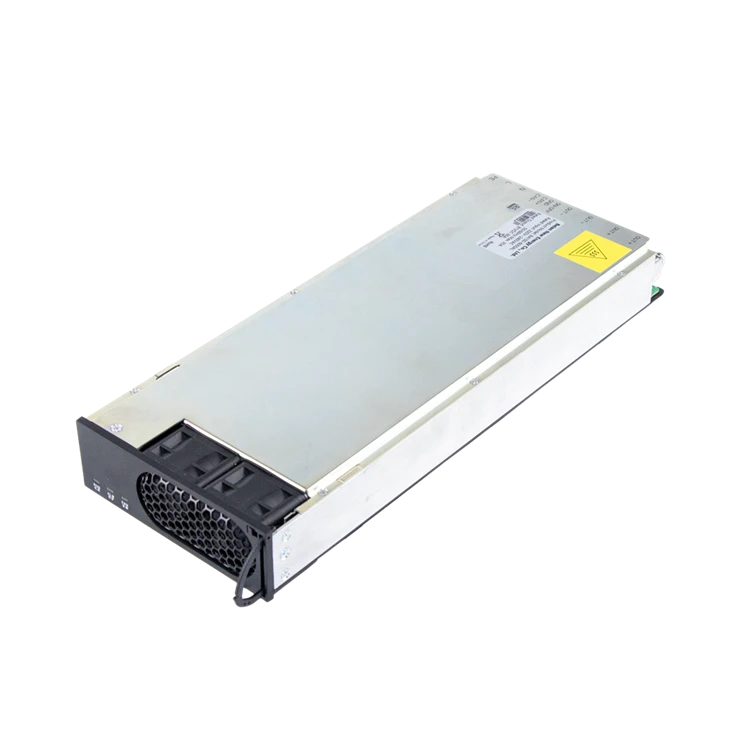

6kW Single Phase Power Module AC-DC DC50V~150V

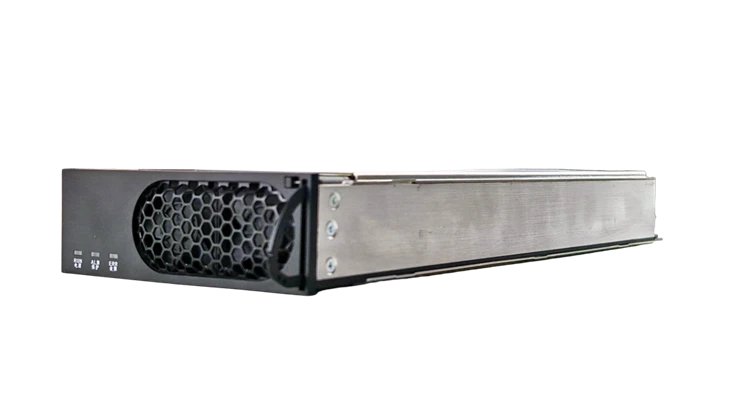

6kW Single Phase Power Module AC-DC DC50V~150V suppliers

Details:

The AC converter, or AC-DC converter,is a key electronic device that converts AC voltage from one level to another.

Send Inquiry

Download

Description

Product Name	BADC10050 Bidirectional DCDC Module
DC bus side
Voltage range	200 ~ 420Vdc
Rated voltage	370Vdc
Max Current	17 Amax (at 200~290 Vdc, ≤12 A)
Battery-side
Voltage range	30~100Vdc
Rated voltage	60Vdc
Max Current	105Amax
Power rating	5kW
Steady-current accuracy	≤±5%
Current ripple	<5%
Voltage ripple	< 2%
Softstart time	3s≤ t ≤8s
Standby power consumption	<30W (Vbat=100Vdc, module dormant)

6kW Single Phase Power Module AC-DC DC50V~150V Converter

Products Description

No.	Item		Value
1	DC Output	Model	BA150-6000AL
		Rated output power	6kW
		Rated output current	40A
		Output voltage range	DC50V~150V
		Efficiency	≥94%
2	AC Input	Rated input voltage	220VAC
		Input voltage range	AC187V~AC264V(Full Power) AC85V~AC187V(Reduced output)
		Frequency	45Hz~65Hz
		Power Factor	≥0.99
3	Working Condition	Working ambient temperature	-40~50℃ 50~75℃(Reduced output)
		Storage temperature	-40~70℃
		Relative humidity	0~95%
		Altitude	<2000m >2000m(Reduced output)
3	MTBF		>120000hours
4	Dimension		L332W124H41.5mm
5	Net weight		2.7kg
6	Communication		CAN
7	Cooling		FAN
