Description
|
Product Name
|
BADC10050 Bidirectional DCDC Module
|
|
DC bus side
|
|
|
Voltage range
|
200 ~ 420Vdc
|
|
Rated voltage
|
370Vdc
|
|
Max Current
|
17 Amax (at 200~290 Vdc, ≤12 A)
|
|
Battery-side
|
|
|
Voltage range
|
30~100Vdc
|
|
Rated voltage
|
60Vdc
|
|
Max Current
|
105Amax
|
|
Power rating
|
5kW
|
|
Steady-current accuracy
|
≤±5%
|
|
Current ripple
|
<5%
|
|
Voltage ripple
|
< 2%
|
|
Softstart time
|
3s≤ t ≤8s
|
|
Standby power consumption
|
<30W (Vbat=100Vdc, module dormant)
|
60kW ACDC Coil 380V High Voltage DC200V~1000V
Products Description
|
No. |
Item |
Value |
|
|
1 |
DC Output |
Model |
BA1000-60000B |
|
Rated output power |
60kW |
||
|
Rated output current |
200A |
||
|
Output voltage range |
DC200V~1000V |
||
|
Efficiency |
≥97% Peak |
||
|
2 |
AC Input |
Rated input voltage |
AC380V/AC480V |
|
Input voltage range |
AC325V~AC520V(Full Power) |
||
|
Frequency |
45Hz~65Hz |
||
|
Power Factor |
≥0.99 |
||
|
3 |
Working Condition |
Working ambient temperature |
-40~70℃ |
|
Storage temperature |
-40~70℃ |
||
|
Relative humidity |
5~95% |
||
|
Altitude |
<2000m |
||
|
3 |
MTBF |
>200000hours |
|
|
4 |
Dimension |
L390*W445*H84mm |
|
|
5 |
Net weight |
22kg |
|
|
6 |
Communication |
CAN |
|
|
7 |
Cooling |
FAN |
|

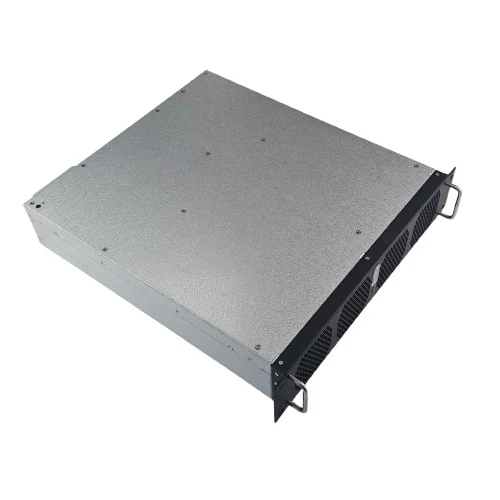

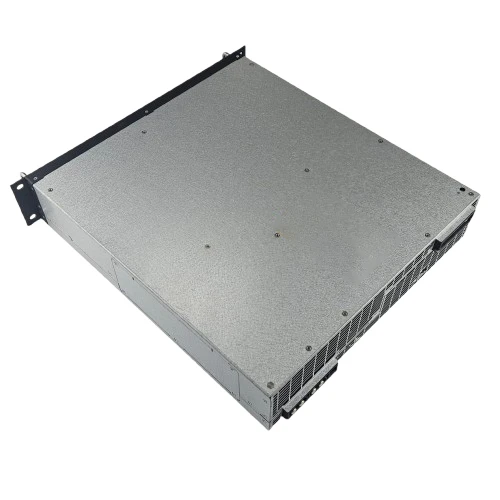

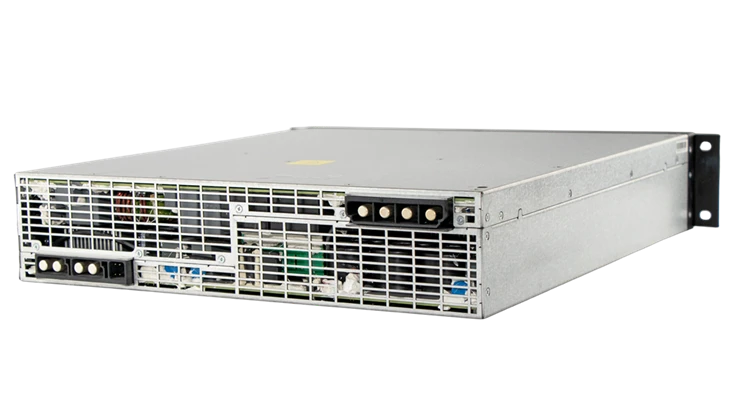

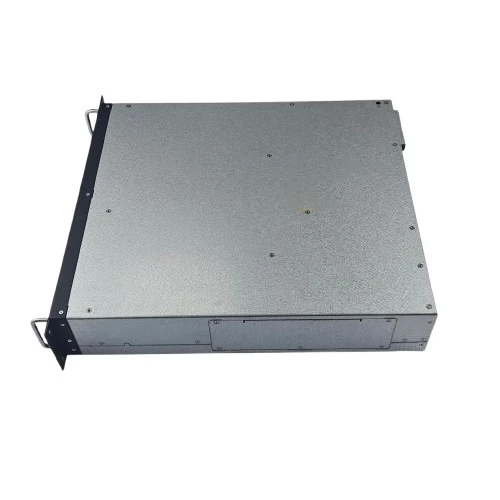

Product Picture
