Hybrid Super Capacitor 2.7V 100F for Car Jump Starter Solar System
Products Description
|
Modle |
BA--C 2R7 107-100F |
|
3000Rate discharge Cap.( ΔV＝2.4V-1.5V) |
100F |
|
Cap. Tolerance(25℃) |
0%~+30% |
|
Rated Voltage(V) |
2.7 |
|
Surge voltage(V) |
2.85 |
|
Internal Resistance ESRDC (mΩ) |
18 |
|
Rated current (discharge to 1/2 VR in 5 seconds) |
20A |
|
Maximum current (discharge to 1/2 VR in 1 second) |
48A |
|
Leakage Current at 72h (25℃) |
2mA |
|
Operating Temp.(Top) |
-40~+70℃ |
|
Storage temperature range (at 0V) |
-40~+70℃ |
|
Weight m |
20 |
|
Energy Density (at U0) |
5.1Wh/kg |
|
Dump energy |
365J(0.1Wh)/75mAh |

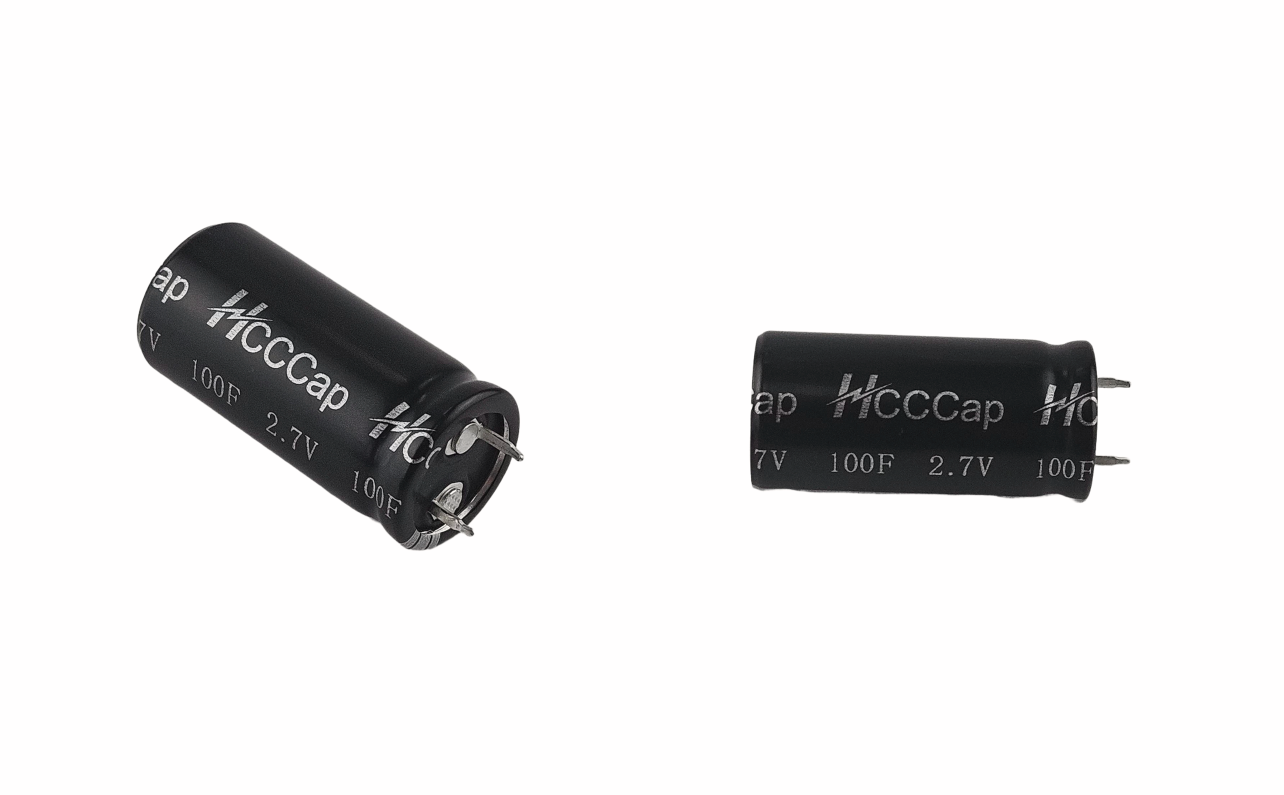

Products Picture
Products Advantages
Wide Operating Temperature Range
Mainstream products operate in a temperature range of -40℃ to +70℃, and the high-temperature (HT)
series can withstand -40℃ to +85℃. They maintain normal operation in low-temperature environments,
making them suitable for extreme scenarios such as the Arctic, Antarctic and high-altitude areas.
Long Cycle Life
Hybrid supercapacitors (LIC/Lithium Capacitors) boast a cycle life of 250,000 times; conventional
supercapacitors can undergo more than 500,000 charge-discharge cycles. With 20 charge-discharge
cycles per day, they can be used continuously for 60 years, which is far longer than traditional batteries.
Excellent Charge-Discharge Characteristics
They support instantaneous high-current charge and discharge, featuring fast charging speed and short
charge-discharge time. They have simple requirements for charging circuits and no memory effect.
Stable Electrical Performance
Certain series (e.g., HP series) feature low internal resistance and can achieve instantaneous high-current
output; the HE series has low leakage current,suitable for long-term low-current discharge; the 3V series is
adapted for long-term stable operation underhigh-voltage conditions.
Products Applications

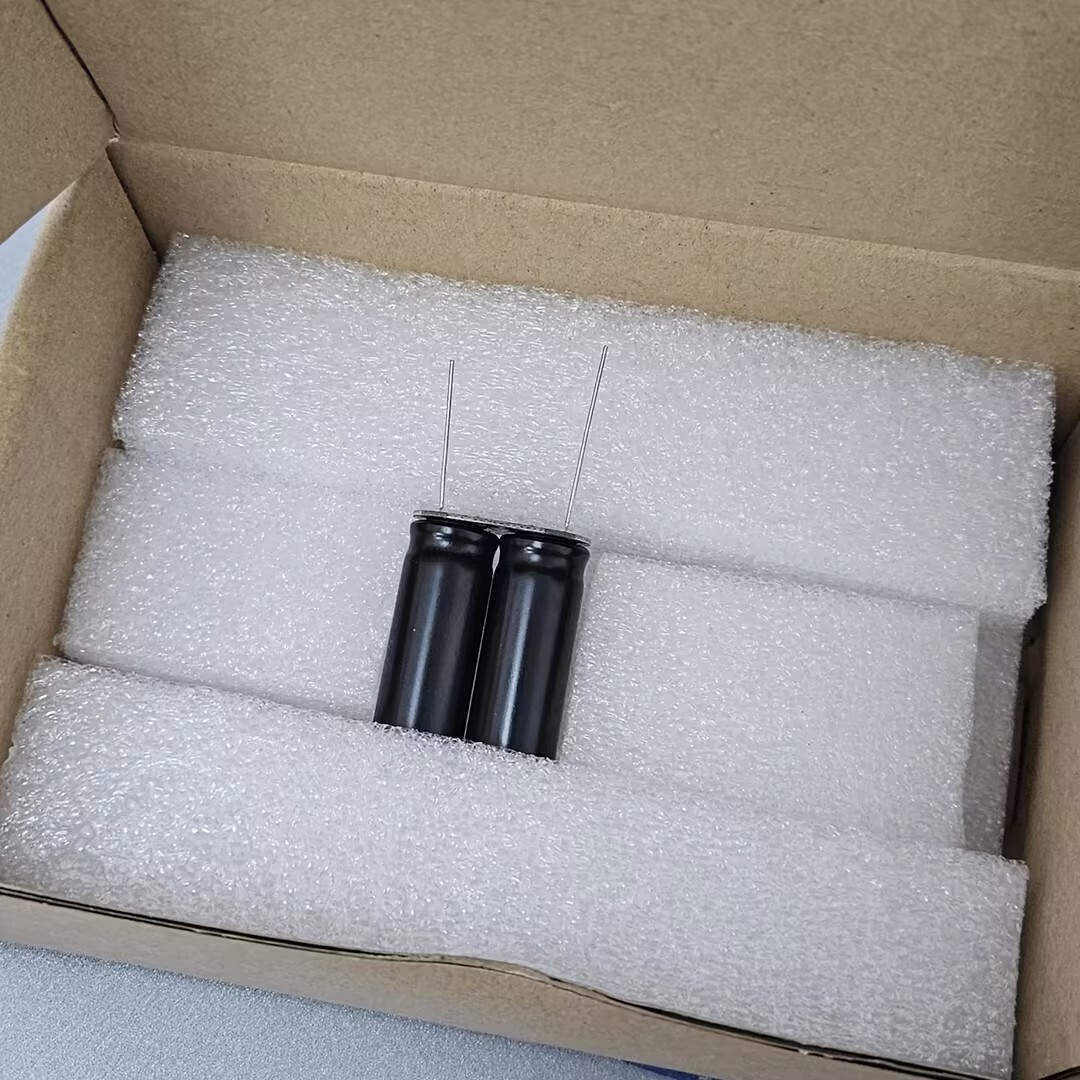

Products package
