Industry-specific attributes |
|
|
Breaking Capacity |
DC320V 2000A |
|
Number of Pole |
2 |
|
Other attributes |
|
|
Model Number |
NDZ3AT-150R |
|
Brand Name |
LAZZEN |
|
Phase |
2 |
|
Place of Origin |
China |
|
Package type |
Ceramic package |
|
Load polarity |
Without polarity |
|
Operating voltage range |
DC12-1000V |
|
Contact Resistance |
0.5mOhm(at150A) |
|
Control Coil |
DC12V DC24V |
|
Mechanical Life |
200,000 times |
|
Auxiliary Contact |
without 1NO |
|
Electrical life |
DC1000V 150A 1000times |
|
Weight |
400g |
|
Certification |
CCC CB CE TUV UL |
|
Packaging and delivery |
|
|
Selling Units |
Single item |
|
Single package size |
9X7X9 cm |
|
Single gross weight |
0.800 kg |

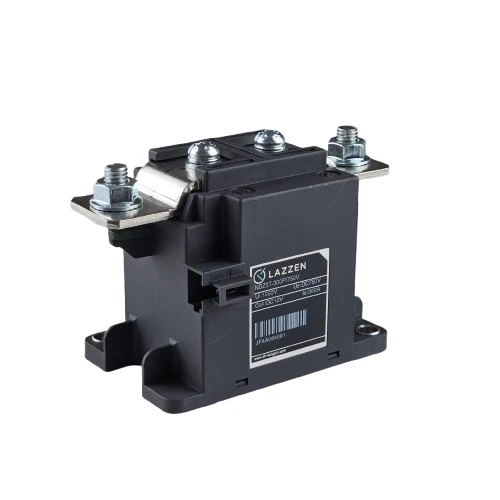

NDZ3T-300P 300A DC12-1000V Single Phase Contactors for EV Charger
Products Description
|
Product Name |
NDZ3T-300P |
|
Main Contact Form |
1NO |
|
Operating Voltage Range |
DC12 - 1000V |
|
Rated Operating Current |
300A |
|
Contact Resistance |
≤0.2mΩ (at 300A) |
|
Short - time Withstand Current |
3000A for 600ms, 300A continuous |
|
Mechanical Life |
200,000 cycles, 3600 cycles per hour |
|
Control Coil (20°C)Rated Voltage Uc |
DC12V, DC24V, DC48V |
|
Auxiliary Contacts |
Without |
|
Type |
/ |
|
Coil Polarity |
Polariz |
|
Maximum Interrupting Current |
DC600V 2500A once |
|
Insulation Resistance |
1000MΩ DC1000V |
|
Power - frequency Withstand Voltage |
AC3000V for 60s, leakage current ≤1mA |
|
Electrical Life |
DC750V 300A 1000 cycles |
|
Impact Stability |
Closing: 20g, Opening: 10g |
|
Impact Strength |
50g |
|
Vibration |
5g 10 - 500Hz |
|
Operating Humidity |
5% - 95% |
|
Weight |
Approximately 800g with terminal block, approximately 710g without |
|
Certifications |
CCC, CB, CE, TUV |

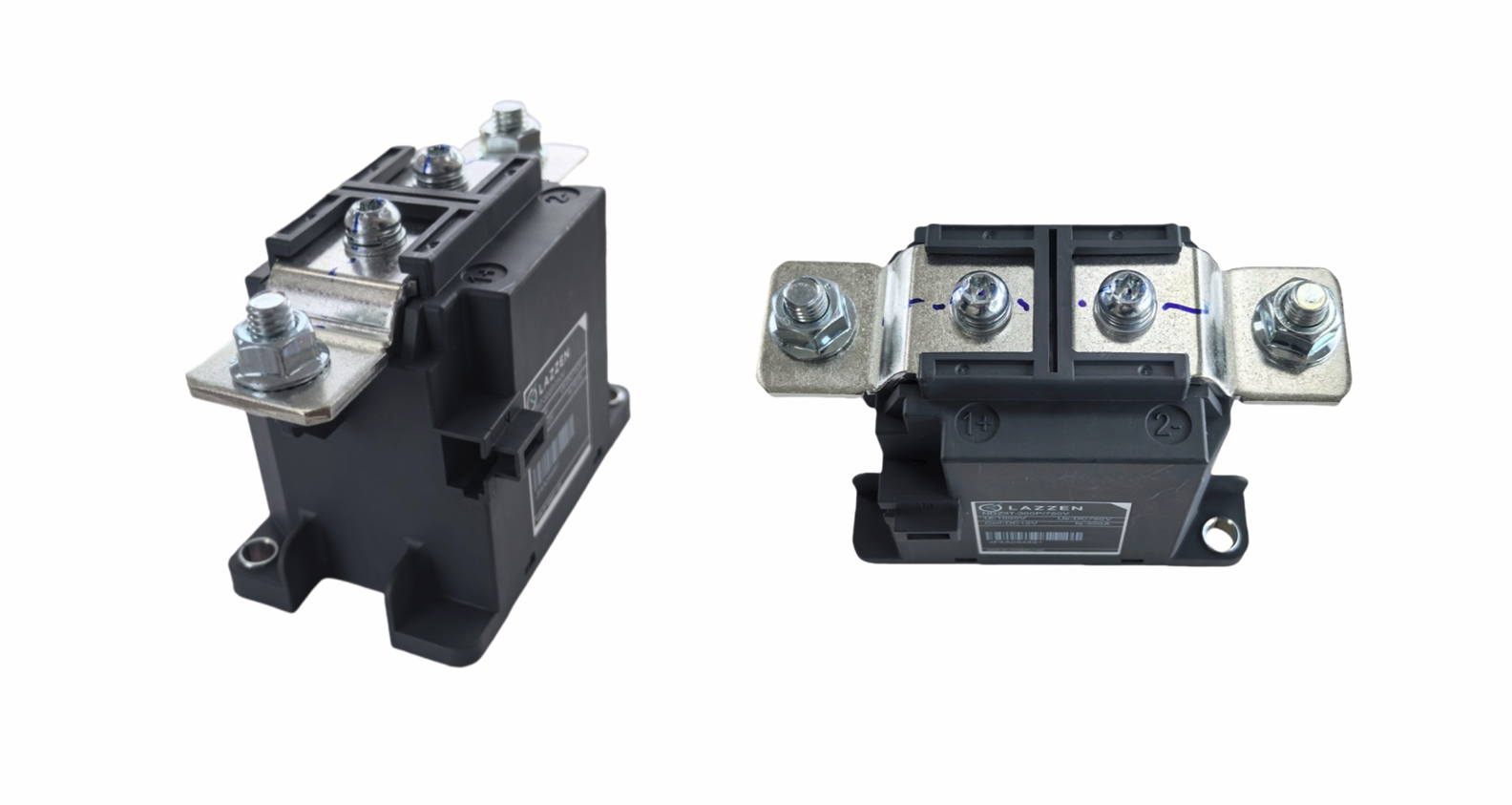

Product Images
Product Family
Product Applications
Certificate
Packing
