Description

Industry-specific attributes
Input Voltage	48V-500V
Output Voltage	100-240V / 380-415V
Output Current	10-100A
Output Frequency	50/60Hz
Other attributes
Model Number	SPF6000ES
Battery Type	LiFePO4
Brand Name	Growatt
Place of Origin	Guangdong, China
Dimension (LWH)	4639.513.2CM
Weight	13.5kg
Type	DC/AC Inverters
Output Type	Single
Inverter Efficiency	99.9%
Packaging and delivery
Selling Units	Single item
Single package size	50X40X18 cm
Single gross weight	15.000 kg

6000W Continuous Output 48VDC Battery 500VDC Max PV Input MPPT Solar Charger 2-Year Warranty

Technical Specifications

Inverter Model
Model	Growatt SPF 6000 ES Lite
Battery Voltage	48VDC
Battery Type	Lithium / Lead-acid
Inverter Output
Rated Power	6000VA / 6000W
Parallel Capability	Not support (standalone operation)
AC Voltage Regulation (Battery Mode)	230VAC ± 5% @ 50/60Hz
Surge Power	12000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
Transfer Time	10ms typical, 20ms Max
Solar Charger
Maximum PV Array Power	8000W
MPPT Range @ Operating Voltage	75VDC ~ 450VDC
Number of Independent MPP Trackers / Strings per MPP Tracker	1 / 1
Max. Input Current per MPP Tracker	30A
Maximum PV Array Open Circuit Voltage	500VDC
Maximum Solar Charge Current	100A
Start-up PV Voltage	120VDC ± 10VDC
AC Charger
Charge Current	80A
AC Input Voltage	230VAC
Selectable Voltage Range	170-180 VAC (For personal computers) ; 90-100 VAC (For home appliances)
Frequency Range	50Hz / 60Hz (Auto sensing)
Physical
Protection Degree	IP20 (indoor)
Dimension (W / H / D)	365 / 275 / 120 mm
Net Weight	8.5 kg
Operating Environment
Humidity	5% to 95% Relative humidity (Non-condensing)
Operating Temperature	0°C to 55°C
Storage Temperature	-15°C to 60°C
Altitude	< 2000 m
Warranty	2 years

Product Details

Key Strengths

Plug-and-Play Terminal for PV Port

MC4-style PV connectors are pre-wired for fast, error-free installation - no extra tools or junction boxes needed on the roof.

Smart MPPT Solar Charger

One independent MPPT tracker with 30 A max input current extracts more energy from the PV string across the full 75-450 VDC range.

Maximum PV Input Voltage up to 500VDC

Wide 75-450 VDC MPPT operating range with 500 VDC open-circuit tolerance gives more flexibility in series-string design.

Configurable Grid or Solar Input Priority

Choose SBU / SOL / UTI priority modes on the LCD to match your self-consumption, backup or peak-shaving strategy.

Compact Standalone Design

Wall-mountable, all-in-one 6 kW inverter-charger for single-unit off-grid or hybrid backup systems without parallel complexity.

Dust-Proof Filter for Harsh Environment

Built-in dust filter protects internal components in dusty, sandy or semi-outdoor installation environments.

Two AC Input Terminals with Integrated Transfer Switch

Two separate AC inputs (utility + generator) feed an integrated transfer switch for seamless 10 ms UPS-style switchover during blackouts.

Product Applications

Off-Grid Solar Home Systems

Single-inverter off-grid solution for remote homes, cabins and rural electrification where the grid is unavailable or unreliable.

Hybrid Solar + Battery Backup

Pair with LiFePO4 batteries for self-consumption, peak shaving and blackout backup with 10 ms seamless transfer.

Small Commercial & Light Industrial

Single 6 kW unit covers small offices, telecom sites, farm outbuildings and workshops needing reliable off-grid or backup power.

Generator-Hybrid Backup Power

Two AC inputs (utility + generator) with integrated transfer switch for long-runtime backup in areas with frequent outages.

Frequently Asked Questions

Q1: Where can I get the price?

A: We usually quote within 24 hours after we receive your inquiry. For urgent cases, please call us or tell us in your email so that we treat your inquiry as a priority.

Q2: Do you have an MOQ for your batteries / inverters?

A: We want to support our customers without a strict MOQ request - sample orders are welcome.

Q3: Can I have a sample order?

A: Yes, we welcome sample orders to test and check quality before bulk purchase.

Q4: What about the lead time?

A: Sample needs about 7 days; mass production time needs 3-5 weeks, depending on order quantity.

Q5: Is it OK to print my logo on the product?

A: Yes. We welcome OEM and ODM orders.

Q6: How long is the warranty?

A: The Growatt SPF-6000-ES-Lite carries a standard 2-year factory warranty. Extended warranty options are available on request.

Q7: What are your terms of payment?

A: We accept T/T and L/C.

Q8: Which certificates do you have?

A: We hold CE / FCC / ROHS / UN38.3 / MSDS for our battery products. The Growatt SPF-6000-ES-Lite carries Growatt's own CE / TUV / UL certifications for the inverter itself.

Q9: How do you ship the goods and how long does it take to arrive?

A: We ship samples by DHL, UPS, FedEx or TNT. For mass orders, you can choose sea or air shipment.

Q10: Can we visit your factory?

A: You are warmly welcome. Our office is located in Suzhou, China, with the integration facility near Guangzhou / Shenzhen.

Hot Tags: growatt spf-6000-es-lite 6kw 48v max pv input 500vdc lifepo4 hybrid inverter, China growatt spf-6000-es-lite 6kw 48v max pv input 500vdc lifepo4 hybrid inverter manufacturers, suppliers, factory, Deye 5KW 8KW 220VAC Hybrid Solar Inverter, Growatt Off Grid 6Kw 48V SPF 6000 ES Plus Inverter, High Quality Solar Inverter 3Kw OFF Grid Hybrid Solar, Hybrid Solar 5Kw 24Series Storage Inverter, solar inverter

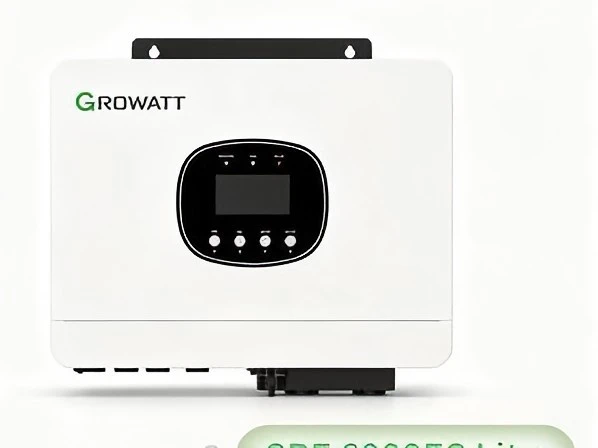

Growatt SPF-6000-ES-lite 6kW 48V Max PV Input 500VDC LiFePO4 Hybrid Inverter
