Industry-specific attributes |
|
|
Contact rating |
150A |
|
Load voltage |
1500V |
|
Other attributes |
|
|
Model Number |
HFE88P-150 |
|
Brand Name |
HONGFA |
|
Phase |
2 |
|
Place of Origin |
China |
|
Main Circuit Rating Current |
150A |
|
Dimensions |
104.0x70.0x107.9 |
|
Resistance |
0.3mohm |
|
Max breaking current |
1000A |
|
Max switching power |
450kw |
|
Coil Voltage |
12 24V |
|
Coil power |
50w |
|
Packaging and delivery |
|
|
Selling Units |
Single item |
|
Single package size |
12X8X13 cm |
|
Single gross weight |
1.540 kg |

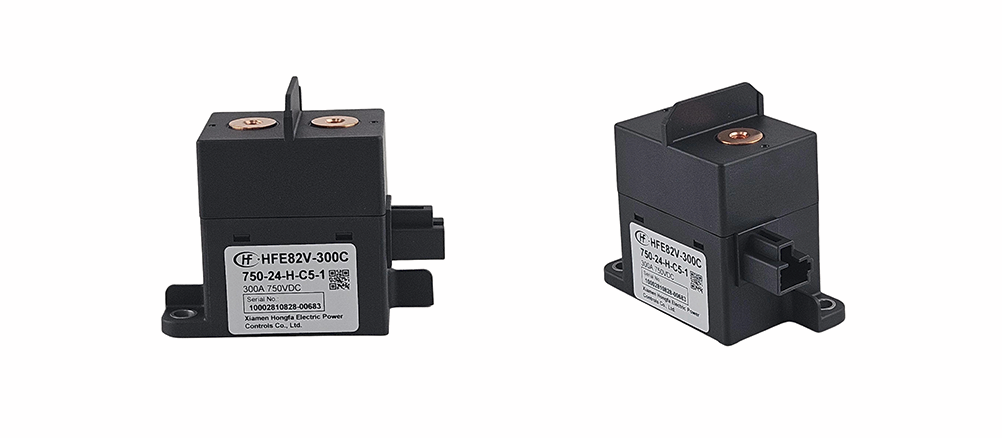

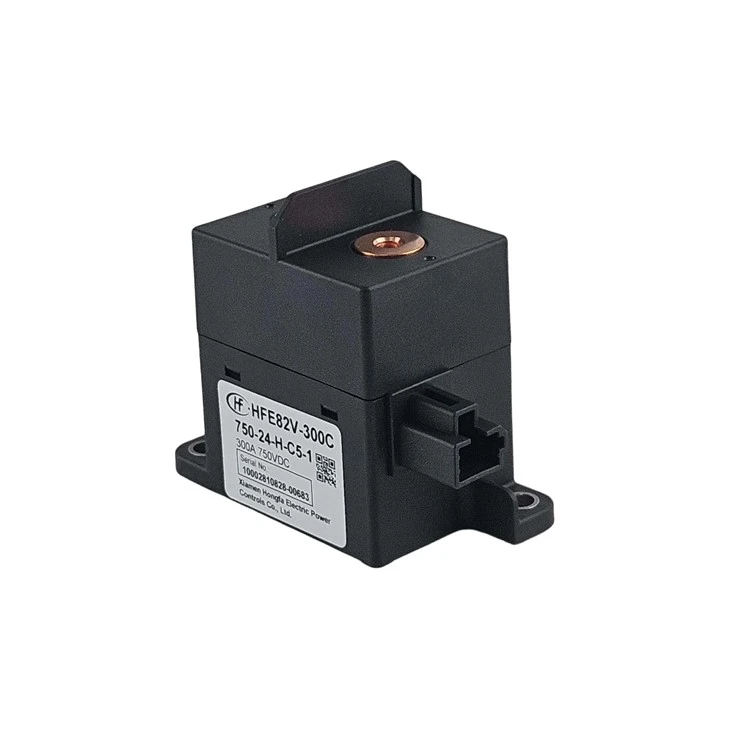

HFE82V-300C HONGFA High Voltage DC Contactor 450V 750V 300A

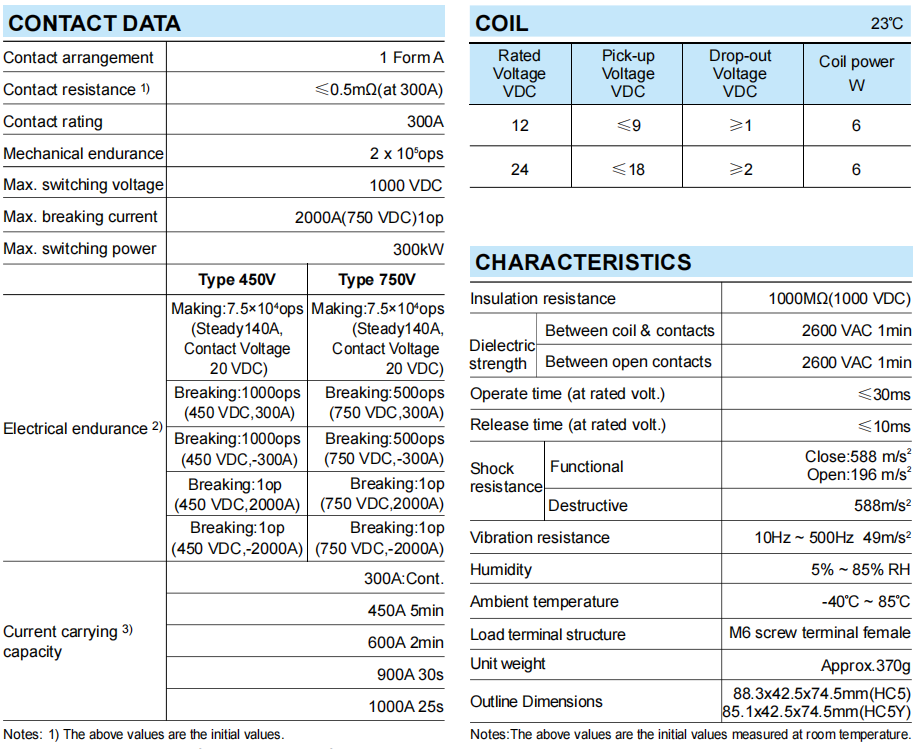

Products Description
|
item |
value |
|
Brand Name |
HONGFA |
|
Certification |
UL CUL VDE TUV CQC |
|
Material |
ceramic copper silver |
|
Model Number |
HFE82V-300C |
|
Place of Origin |
China |
|

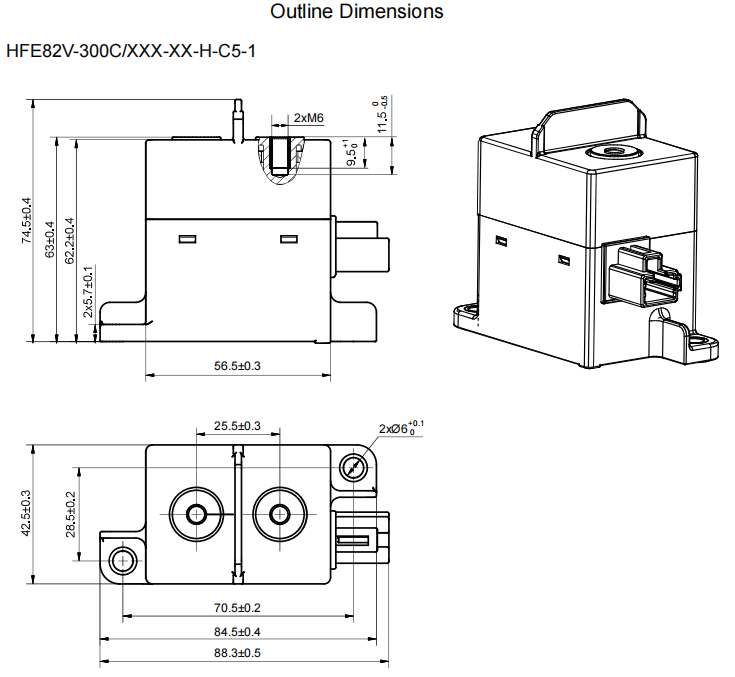

Dimensions |
88.3x42.5x74.5 |
|
Resistance |
0.5mohm |
|
Contact rating |
300A |
|
Load voltage |
450V 750V |
|
Max breaking current |
2000A |
|
Max switching power |
300kw |
|
Coil Voltage |
12 24V |
|
Coil power |
6W |
|
Main relay |
Precharge relay |
Fast charge relay |
Normal change relay |
Auxilliary relay |
|
|
Passenger vehicle EV/PHEV |
HFE82V-100D HFE82V-150D HFE82V-150F HFE82V-200B HFE82V-200W HFE82V-250 HFE82V-250C HFE82V-300C |
HFE82V-20 HFE80V-20B HFE80V-20C HFE80V-20D |
HFE82V-150D HFE82V-200W HFE82V-250 HFE82V-250C HFE82V-300C HFE85V-300M HFE82V-400M |
HFE82V-40 HFE80V-40 |
HFE82V-40 HFE80V-20B HFE80V-20C HFE80V-40 |
|
Passenger vehicle HEV |
HFE82V-60 HFE82V-100D HFE82V-150D |
HFE80V-20B HFE80V-20C HFE80V-20D |
HFE80V-20B HFE80V-20C HFE80V-40 |
||
|
Bus |
HFE82V-250 HFE82V-250C HFE82V-300C HFE82V-600 |
HFE80V-20B HFE80V-20C HFE80V-20D |
HFE82V-300C HFE82V-400M HFE82V-600 |
HFE82V-40 HFE80V-40 |
HFE82V-20 HFE82V-40 HFE82V-100D |
|
Mild electric vehicle (Low speed EV) |
HFE82V-60 HFE82V-60B HFE82V-150D HFE82V-200B HFE80V-200 |
HFE80V-20B HFE80V-20C HFE80V-20D |
HFE80V-200 |
HFE80V-20B HFE80V-20C HFE80V-40 HFE80V-60 |
HFE80V-20B HFE80V-20C HFE80V-40 HFE80V-60 |
|
Logistics vehicle |
HFE82V-150D HFE82V-200B HFE82V-250C |
HFE80V-20B HFE80V-20C HFE80V-20D |
HFE80V-20B HFE80V-20C HFE80V-40 |
HFE80V-20B HFE80V-20C HFE80V-20D |
|
Relay type |
HFE82P-20 HFE82P-60B HFE85P-150 HFE88P-150 HFE82P-200B HFE85P-250 HFE88P-250 |
|||
