Industry-specific attributes |
|
|
Rated load voltage Ue |
12-1500Vdc |
|
Rated load current Ie |
200Amp |
|
Other attributes |
|
|
Model Number |
EVH200L |
|
Brand Name |
ALQ |
|
Place of Origin |
Jiangsu, China |
|
Rated voltage of coil Us |
12Vdc or 24Vdc |
|
Material |
Ceramic brazed seal |
|
Certification |
UL/Rohs |
|
Warranty |
2 Years |
|
Weight approximately |
370g |
|
Contact resistance initial |
Typical value 0.2Milliohm |
|
Electrical life |
DC450V 10000 second DC750V 1000 second |
|
Application |
Under 200V |
|
Packaging and delivery |
|
|
Selling Units |
Single item |
|
Single package size |
6X5X7 cm |
|
Single gross weight |
0.600 kg |

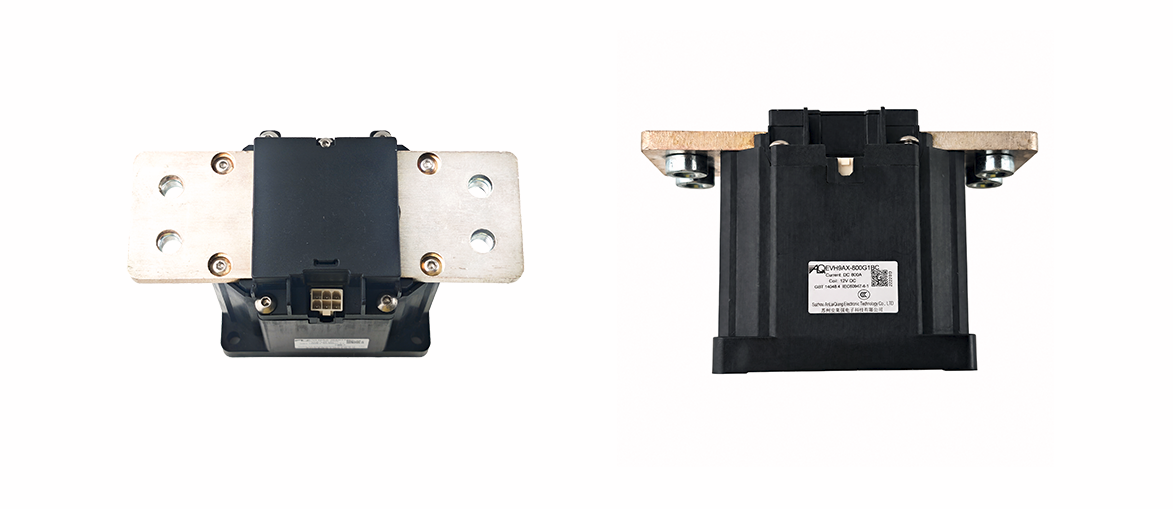

Technical Specifications
| Parameter | Value |
|---|---|
| Model | EVH9AX-800G1BC |
| Brand | ALQ |
| Rated Current | 800 A |
| Max. Switching Voltage | 1500 V DC |
| Rated Load Voltage (Ue) | 12 - 1500 V DC |
| Power Contact Arrangement | SPST-NO-DM (Single Pole Single Throw, Normally Open, Dual Make) |
| Auxiliary Contact | SPST-NO / SPST-NC / None (optional) |
| Coil Voltage (Us) | 12 V DC / 24 V DC / 48 V DC (optional) |
| Coil Type | Single coil |
| Contact Resistance (initial) | Typical 1 mOhm |
| Dimensions (L x W x H) | 168.0 x 86.0 x 97.4 mm |
| Mounting Type | Modular |
| Origin | Jiangsu, China |
| Warranty | 1 year |
| Electrical Life | [To verify: DC450V - 10,000 operations; DC750V - 1,000 operations] |

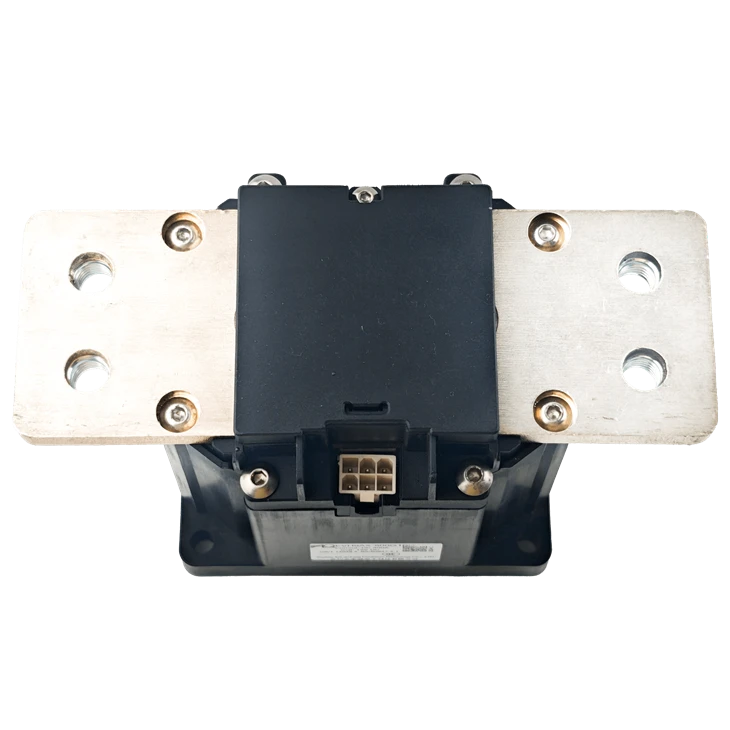

Product Details
Why Choose ALQ DC Contactors?
Superior Arc Resistance & Long Electrical Life
Engineered for high-voltage DC systems up to 1500 V DC, the EVH9AX-800G1BC ensures stable performance under frequent on-load switching -- ideal for electric vehicles, DC fast charging, and energy storage applications.
Excellent Capacitive Load Surge Tolerance
Unique dual-make contact design prevents contact welding during inrush current events -- critical for battery packs, chargers, and PCS systems where capacitive surges are common.
Robust Encapsulation & Environmental Protection
Epoxy-sealed body provides superior protection against dust, moisture, and vibration -- achieving [IP rating to verify] level protection without additional housing, suitable for harsh industrial environments.
Wide Coil Voltage Options
Available with coil voltages of 12 V DC, 24 V DC, or 48 V DC, making integration easy across various low-voltage control systems in EVs, charging piles, and industrial equipment.
Flexible Configuration Options
SPST-NO-DM power contact with optional auxiliary contact (NO / NC / None). Rated current up to 800 A covers demanding high-power EV and energy storage applications. Modular mounting for easy installation and replacement.
Certifications

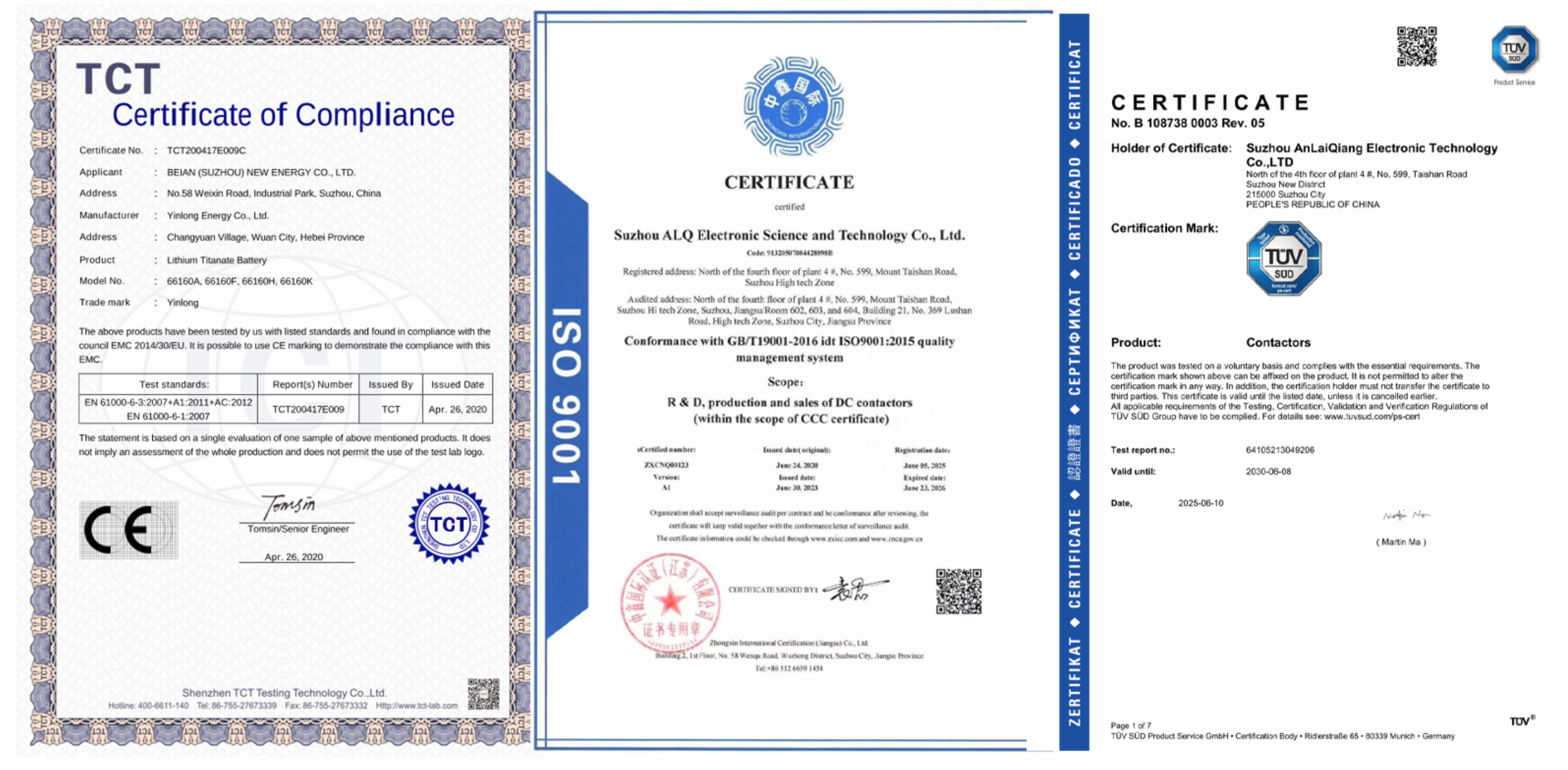

CE, ISO9001:2015, TUV, CCC certified. Quality management system conforms to GB/T19001-2016 / ISO9001:2015.
Product Applications
Industrial Vehicles Electric forklifts, electric pallet trucks, electric aerial work platforms, intelligent logistics systems, automated guided vehicles (AGV), cold chain logistics equipment, industrial robots, electric tools, electric golf carts, etc. |
DC Charging Equipment Chargers, small DC charging piles, monoblock DC charging piles, split-type DC charging piles (group charging), ultra-fast DC charging piles, integrated DC charging piles for heavy-duty trucks, etc. |
Energy Storage System Large-scale energy storage (generation-side, grid-side), medium-scale energy storage (industrial & commercial), small-scale energy storage (residential), etc. |
Frequency Conversion Equipment High-voltage frequency converters, power conversion systems (PCS), and industrial rectifier power supplies, etc. |
Frequently Asked Questions
Q1: What is the maximum switching voltage of the EVH9AX-800G1BC?
A: The EVH9AX-800G1BC supports a maximum switching voltage of 1500 V DC, making it suitable for high-voltage electric vehicle and energy storage applications.
Q2: What coil voltages are available?
A: The contactor is available with 12 V DC, 24 V DC, or 48 V DC coil voltages. Select the option that matches your control system when ordering.
Q3: Can this contactor be used in energy storage systems?
A: Yes. The EVH9AX-800G1BC is designed for energy storage systems (ESS), including generation-side, grid-side, industrial & commercial, and residential applications. Its high current rating (800 A) and 1500 V DC voltage make it ideal for large-scale battery banks and PCS systems.
Q4: What is the contact arrangement of this contactor?
A: The power contact uses an SPST-NO-DM (Single Pole Single Throw, Normally Open, Dual Make) configuration. An optional auxiliary contact is available in SPST-NO, SPST-NC, or none.
Q5: How does the EVH9AX-800G1BC compare to lower-current models?
A: The EVH9AX-800G1BC is rated for 800 A -- significantly higher than standard models (e.g., 50 A, 150 A, 300 A). It is specifically engineered for high-power applications such as ultra-fast DC charging piles and large-scale energy storage, where lower-current contactors cannot safely operate.
Q6: How do I request a quote and what is the lead time?
A: Submit your required specifications (current, coil voltage, auxiliary contact type) through the inquiry form or contact us via WhatsApp. Our engineers will respond within 24 hours. Sample lead time is [to verify with factory].
